| Business Type | Manufacturer, Exporter, Supplier |
| Belt Types | PVC,PU,Rubber,Heat-resistant,Food-grade (FDA/EC 1935/2004) |
| Belt Widths | 75 Mm,2000 Mm,Common: 300 / 500 / 800 / 1000 Mm |
| Belt Speed Range | 0.05 - 3.0 M/s (Variable Via VFD) |
| Click to view more | |
Product Details
Load Capacity
5 - 2000 Kg/m (Depends On Width & Belt)
Drive Options
Gearmotor (IEC),Direct Drive,Drum Motor
Power
0.1 - 30 KW
Idlers/Rollers Diameters
50 Mm,60 Mm,76 Mm,89 Mm
Idlers/Rollers Bearings
Precision, Sealed For High-dust/food Use
Frame Material
Mild Steel (MS) Painted/Powder-coated,Stainless Steel (SS304/SS316) For Hygiene
Tracking
Self-tracking Rollers,Edge Guides; Crown Pulleys As Option
Tensioning
Screw,Gravity,Automatic Take-up
Incline
Up To 18° (Cleated Belts For Higher Inclines Up To 45°)

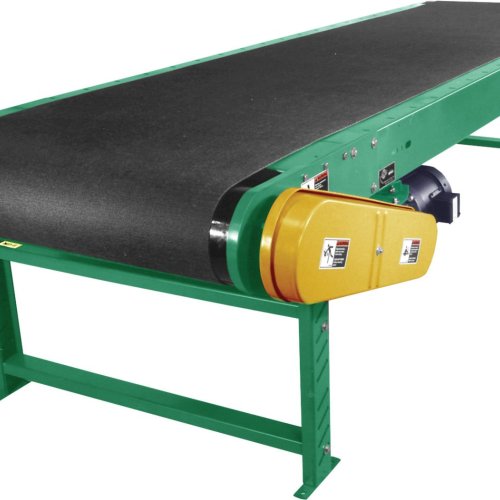

High-performance conveyors for continuous, gentle, and controlled transport of bulk and unit loads.
Description & Use:
Modular or bespoke belt conveyors for light- to heavy-duty applications, available in flat, troughed, inclined, and cleated belt variants. Designed to move cartons, bags, components, and bulk material between process stations with consistent speed and minimal product damage.
Controls & Integration:
- VFD speed control with PLC/HMI interface.
- Start/stop interlocks, emergency stop, belt misalignment and belt slip monitoring.
- Optional sensors: photoelectric, proximity, weigh-feeders, metal detectors, end-of-line sensors.
- Communication: Modbus/TCP, Profinet, EtherNet/IP for Industry 4.0 connectivity.
Optional features:
- Food-grade belts, anti-static coatings, dust covers, belt cleaners, skirt seals, modular plastic belts, washdown design.
Maintenance & Safety:
- Easy-access idler removal, bolt-on modules for quick belt replacement.
- Safety guards, pull-cords, emergency stops, and lockout/tagout points.
- Typical MTBF: 12–36 months depending on duty; recommended preventive inspection every 3 months.
Applications : packaging, warehousing, food processing, order-picking, assembly lines.
